SPM Power Modules Series Released

Inverter and Converter Kits

Taraz Technologies announces the addition of SPM Series to Power Electronics Development Modules product line. The diverse SPM power modules series comes in 4 common circuit configurations such as Half Bridge, Full Bridge, 3 Phase and MMC Cell with optional MOSFET, IGBT or Silicon Carbide (SiC FET) semiconductor switches.

The SPM power modules compliment gate drivers to provide power blocks for rapid power electronics prototyping. With the complete solution, researchers can outdo the time consuming practice of hardware development and focus profoundly on their primary research objectives.

SPM Power Modules are simple and modular power blocks that are directly pluggable with gate driver modules and can be used for fast prototyping of standard power converter circuits such as, Single & Multi-Phase Inverters, Buck/Boost Converters, Single & Multi-Phase Active Rectifiers and Modular Multi-Level Converters. It can cover wide range of applications such as Variable Frequency Drives (VFDs), BLDC Motor Drives, PV inverters and converters in research and educational environments.

User can connect Input and output terminals using pluggable terminal blocks or banana connectors, providing ease of use in labs. Test points are also available for pain free testing. Custom power blocks could be provided upon request as well.

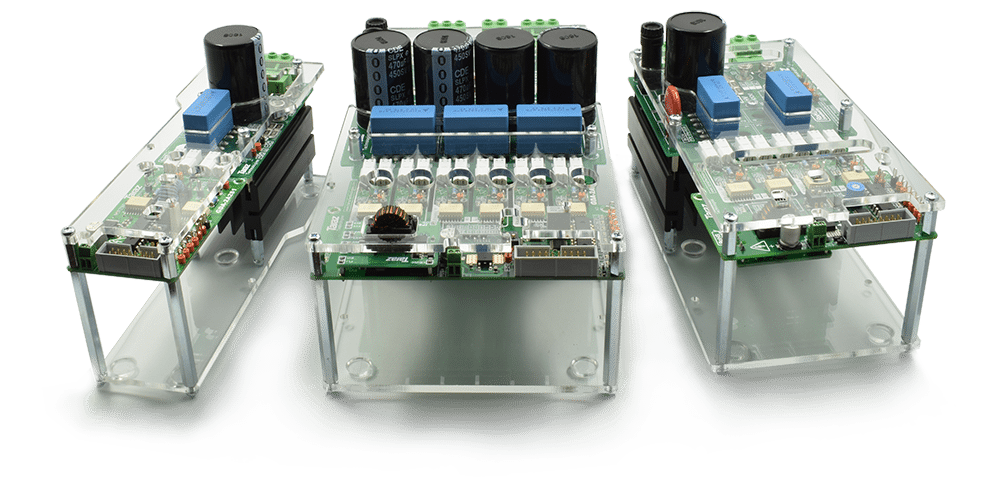

Power block kits are a combination of SPM power modules with their optimized gate drivers. Available in 4 common configuration such as Half Bridge, Full Bridge, 3 Phase and MMC Cells, they can be operated out of box directly with 3.3/5V compatible IDC input interface connector. For safety and sturdiness, kits are enclosed in two sided top and bottom acrylic sheets. Terminal blocks and banana connectors can be used for power input and output, which are best suited for lab environments. Users can access the testing points for measurement while dual LEDs provide visual feedback of switch status.

Major Target Markets

  • Universities and R&D Organizations
  • Power Electronics Labs
  • Research Groups

Features:

  • SiC, IGBT and MOSFET Switches Option
  • TB & Banana Input, Output Connectors
  • DC Link Over Voltage Protection
  • Direct Interface with Gate Drive Modules
  • Test Points for Easy Testing
  • Simple & Cost Effective Solution
  • DC Link Safety Discharge & Indication

Applications

  • Single Phase, Three Phase and Multi Phase Inverters / Motor Drives
  • Modular Multi Level Converters (MMC)
  • Brushed/Brushless DC Motor Drive
  • PV Inverters
  • Buck/Boost Converters
  • PFC Active Rectifiers
  • Resonant Converters
  • MPPT Converters

Availability

SPM Series is available starting at 270USD MSRP.

About Taraz

Taraz Technologies is a research and development company based in Pakistan, incorporated on 26th November 2012. Taraz Technologies is targeting market penetration through its strength and expertise in the field of power electronics, instrumentation and mechatronics, with focus on innovation and beautiful thinking approach for problem solving and product development. Our initial product development focus is in the field of power electronics, which is a core technology in industrial automation, renewable energy and smart grid systems. These fields are important to the future of humanity.

Taraz Technologies with the aim to reduce costs and add flexibility decided to have in house manufacturing. The company has established a prototyping and low volume PCB assembly lab with future plans to set up high volume PCB production plant. We also provide EMS (Electronics Manufacturing Services) to customers with prototyping and low volume production needs.

We are committed to serve humanity in general and uplift technological, economical, educational and social standards in the countries we operate in.
